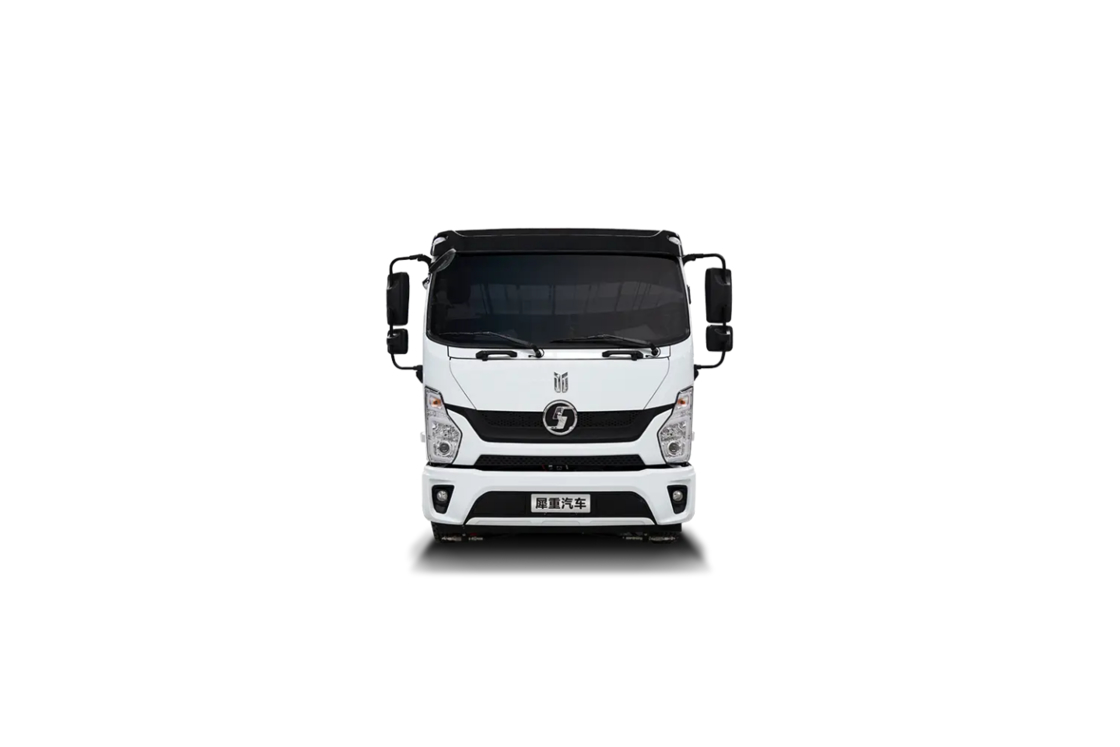

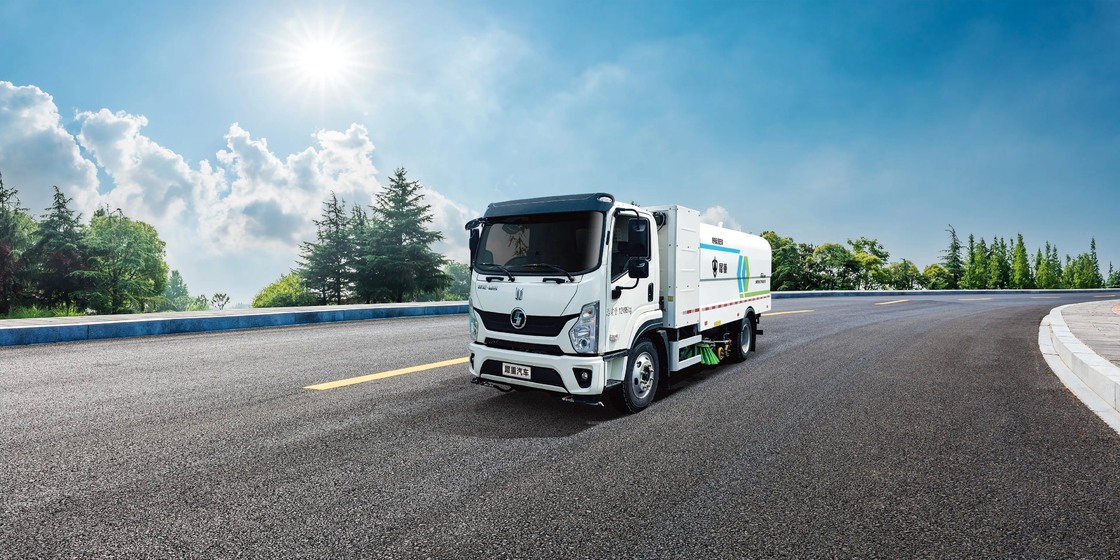

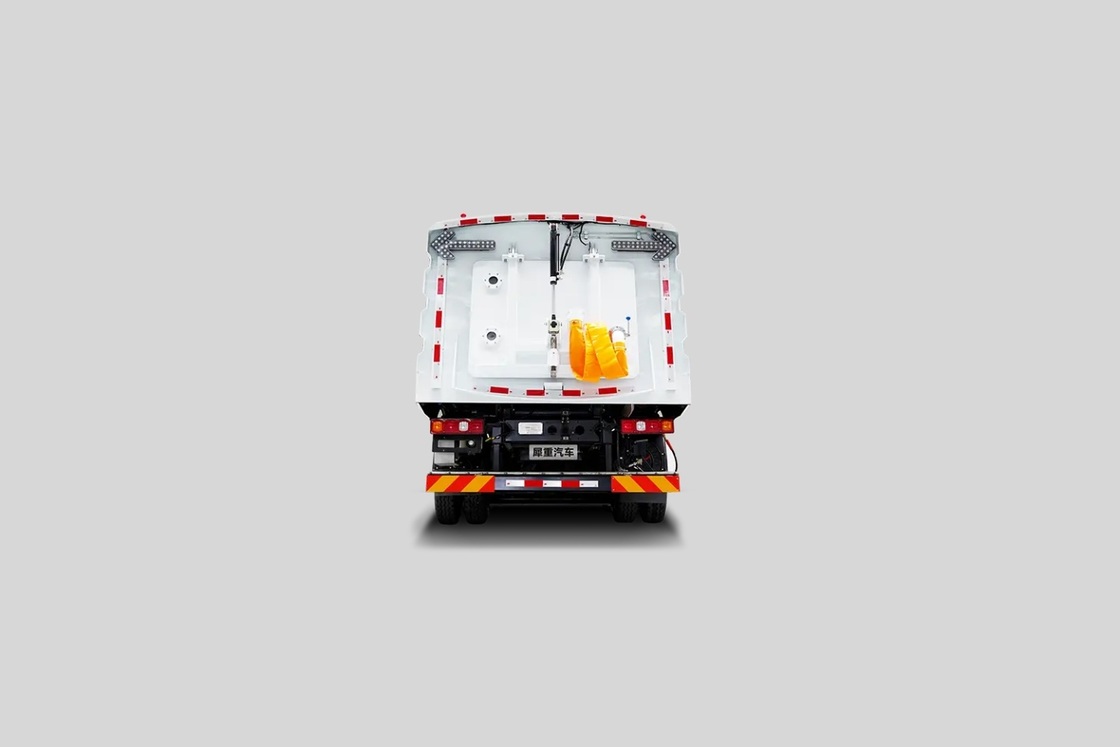

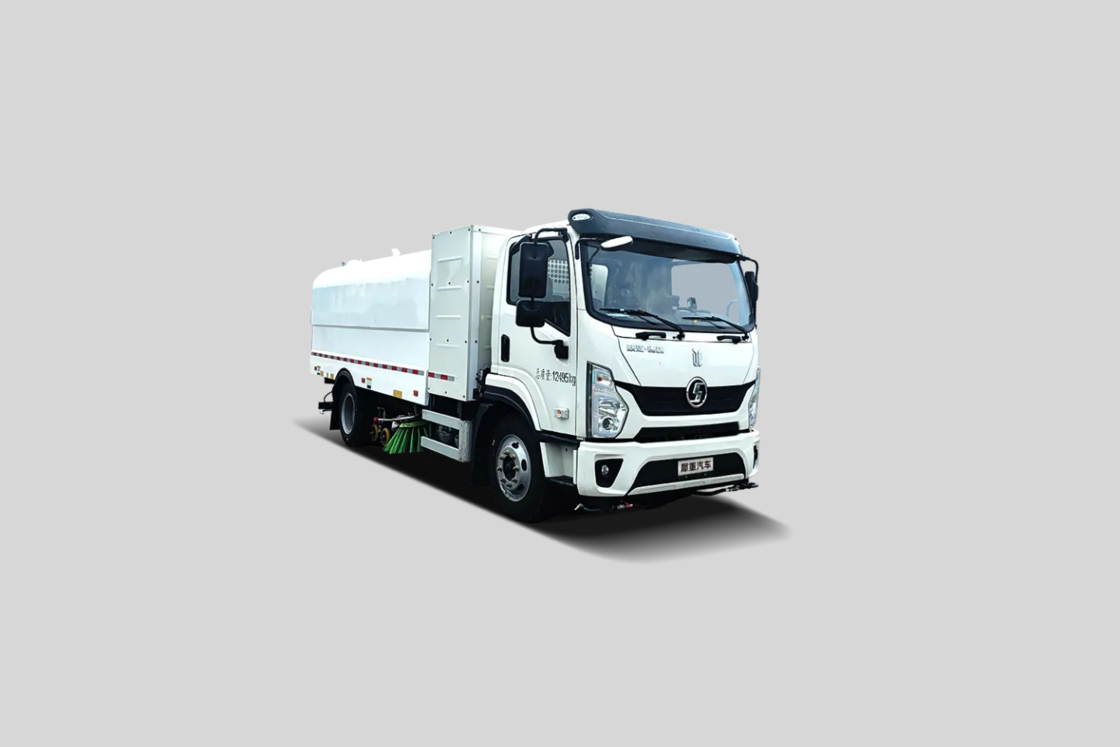

Name: Sanitation Vehicles Pure electric Zero Emission Type 12 T Washing Sweeper
Brand: Zhongzhi First Bus Chengdu Co., Ltd.
SKU: CDL5070TYHDFBEV
Price: 150,100.00 USD
Availability: InStock

Casa > produtos > Veículo de Saneamento >

Sanitation Vehicles Pure electric Zero Emission Type 12 T Washing Sweeper

Lugar de origem:

China

Marca:

XEAZON

Certificação:

ISO 9001

Número do modelo:

CDL5070TYHDFBEV

Contacte-nos

Solicite um orçamento

Detalhes do produto

Altura da largura x do comprimento x (milímetros):

5850×1740×2220

Peso máximo/meio-fio (kg):

6550/4800

Marca de chassi:

Dongfeng

Volume do tanque de água (m³):

2.2

Largura de varredura (m):

2.6

Tempo de operação abrangente (h):

≥ 10

Volume do recipiente (m³):

2.2

Inclinação máximo:

≥20%

Distância percorrida (km):

300（método de velocidade equivalente）

Potência nominal/pico do motor (kW):

60/120

Torque nominal/pico do motor (N·m):

164/420

Marca/capacidade da bateria (kWh):

CATL/105.28

Termos do pagamento & do transporte

Quantidade de ordem mínima

Tempo de entrega

40 a 60 dias úteis

Termos de pagamento

T/T,L/C

Habilidade da fonte

25000 unidades/ano

PRODUTOS RELACIONADOS

Vídeo

Sanitation Vehicles New Energy Type 7T Washing Sweeper

Obtenha o melhor preço

Sanitation Vehicles New Energy Type 4.5T Road Maintenance Vehicle

Obtenha o melhor preço

Contacte-nos

+8613608032908

jolin@zevauto.com

Contacte agora

Descrição do produto

Sanitation vehicles pure electric zero emission type 12T washing sweeper.

12T washing sweeper, the vehicle model primarily serves multiple functions such as road flushing, road sweeping, garbage collection, curb and curb facade washing, high-pressure spray gun, dust suppression spraying, corner spray, dump container cleaning, etc.

Key Specifications

Attribute	Value
Product name	Electric Sanitation Vehicle
Type	Zero Emission
Fuel type	Electric
Dimensions (mm)	742523502845
Chassis brand	Dongfeng
Water tank volume (m³)	6
Sweeping width (m)	3.25
Comprehensive operating time(h)	more than 8 hrs
Volume of container(m³)	3.5
Maximum gradient	≥20%
Endurance mileage (km)	400(equivalent speed method)
Motor rated/peak power (kW)	105/160
Motor rated/peak torque (N·m)	500/1050
Battery brand/capacity (kWh)	CATL/175.03

Key Advantages

Zero emission : Electric type
Long operating time after a single water addition: The clean water tank has a super large volume, which is higher than similar products and effectively extend the operation time after a single water addtion.
Complete operation functions - It adopts the layout of "middle two sweeping disks middle wide sution nozzle and V shape spray rod" offering road sweeping, cleaning, curb brushing, dust suppression spraying, corner spray. hand held spray gun operation and other functions.
Corrosion resistant container: material is 304 stainless steel, which provides high corrosion resistance and exellent sealing.

Customization Options

Available as electric sanitation vehicle new energy type 7T 4.5T washing sweeper.

Manufacturer Information

Headquartered in Chengdu city, Sichuan province, China, ZEV is a group company specializing in the development, production, sales and market application of buses and coaches. Since its foundation in 2006, ZEV's culture of continuous innovation has made it a leading manufacturer in China.

With research platforms including the enterprise technology center and test center, ZEV operates 2 plants with an annual production capacity reaching 25,000 units. The company offers a 5m-18m product lineup of battery electric buses and coaches covering various segment markets.

In 2022, ZEV was awarded 825 units of 12m full electric city bus bidding from Chengdu Transport Cooperation, with 400 units serving during the 31st FISU World University Games.
